GR40 Suspension (Subaru Outback)

The GR40 is our 1-way adjustable (rebound) novice level rallycross suspension. It features an inverted shock, 40mm piston, 20 points of rebound adjustment, Magnitude springs and a 1-piece assembly (mounting tabs and threaded body are one unit vs the traditional modular assembly with and adjustable/ removable lower mount). The GR40 features 6-8” of travel, depending on the application. The entire body is electroplated to prevent corrosion.

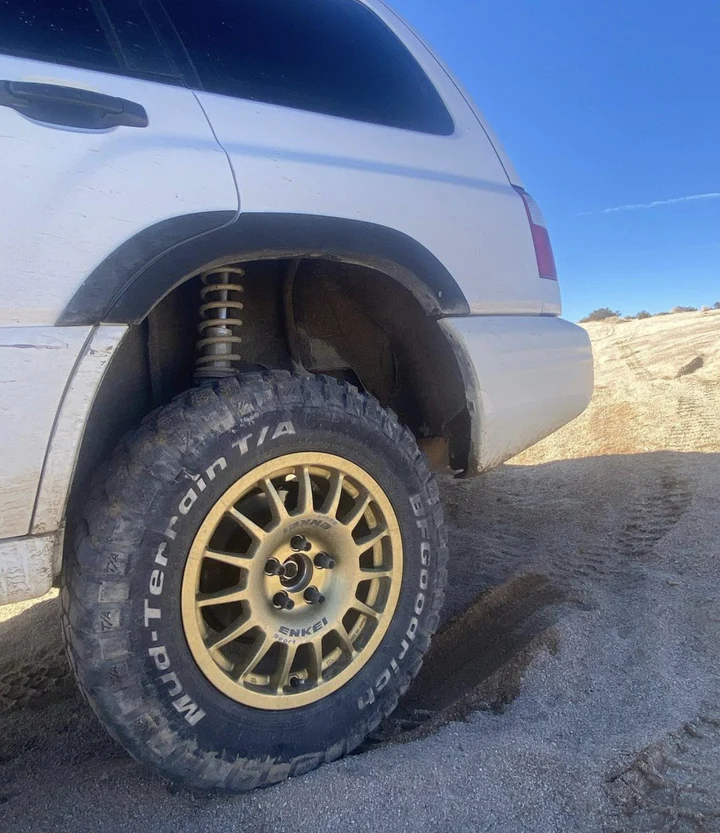

OFFROAD:
This version is meant for offroad and crawling. Perfectly suited for street and daily driving, but optimized for offroad adventures. Optimal ride height is 2" over OEM height. This version uses longer springs without helper springs and the main springs can be customized to suit the additional weight from gear, metal bumpers, spare tire racks, roof racks, etc. You will need to run subframe spacers to ensure proper rear alignment.

Top Mounts:

OEM Hybrid: Similar to GroupN/ OEM
Camber Plate: Allows you to adjust camber up to 3*
Offset Spherical: Equal to a maxed out camber plate allowing vehicles lifted 2" to achieve -0.5* of camber. This mount is solid so it is very strong.

SPECIFICATIONS:

• Designed for Heavy Duty Offroad
• Adjusts from 1-3" over OEM ride height

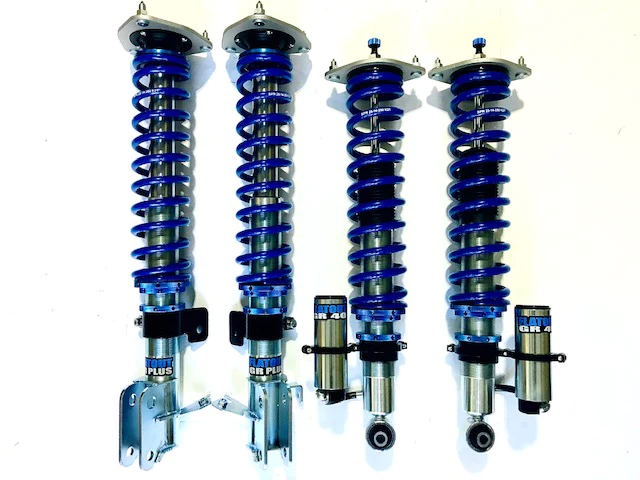

• 2 Front Assemblies
• 2 Rear Assemblies w/ reservoirs
• 40mm Inverted Shock Insert
• Radial bearing on Front Assembly
• KING Linear Rate Springs
• Highly Polished Electro-Plated Nickel Cartridge
• Rebuildable Inverted Shock
• CNC Machined High-flow Aluminum Piston
• Stainless Steel Shims
• Light Weight Synthetic Shock Oil
• Rebound Adjustable : 20 pts
• Brackets for Sensor Lines on shock body
• Individual Parts Available
• Approx 3wks to hand assemble and ship
